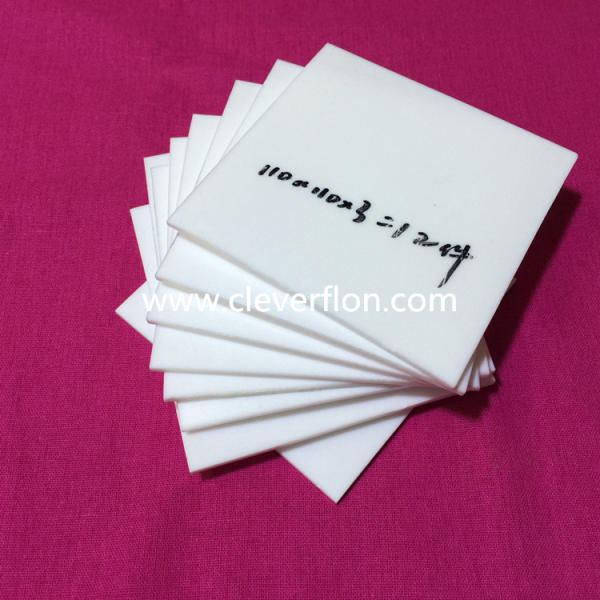

PTFE sheet
PTFE sheet, solid surface
Specs:
|
Length(mm)×Width(mm) |
Thickness(mm) |
|
|
Nominal |
Tolerance |
|
|
150×150 |
1.0-30 |
±0.30-±0.50 |
|
250×250 |
1.5-30 |
±0.30-±0.50 |
|
300×300 |
1.5-30 |
±0.30-±0.50 |
|
450×450 |
1.5-30 |
±0.30-±0.50 |
|
600×600 |
2-30 |
±0.30-±0.50 |
|
800×800 |
3-30 |
±0.30-±0.50 |
|
1000×1000 |
3-30 |
±0.30-±0.50 |
|
1200×1200 |
3-30 |
±0.30-±0.50 |
|
1000×2000 |
5-35 |
±0.30-±0.60 |
|
1500×1500 |
5-30 |
±0.30-±0.50 |
|
1800×1800 |
8-30 |
±0.30-±0.50 |
|
2000×2000 |
8-30 |
±0.30-±0.50 |
Main Properties
|
Properties |
Unit |
Result |
|
Apparent Density |
g/cm3 |
2.10—2.30 |
|
Tensile Strength (min) |
MPa |
15.0 |
|
Ultimate Elongation (min) |
% |
150 |
|
Dielectic Strength (min) |
KV/mm |
10 |
Details:
1. Name
PTFE sheet / Teflon PTFE resin molded sheet
2. Features
PTFE molded sheet is manufactured by molding method with PTFE granular resin. PTFE is the most
chemical resistance of all known plastics. It does not age. It has the lowest coefficient of friction of all
known solid materials and a wide range of practicable temperature from -180%°C - +260°C
3. Uses
Lining Bearing pads, seals, and electrical insulation
